Baer's NEWEST Drag Offer!
The Mustang S550 Deep Stage Drag Race SS4+ 2.0 has been added to accommodate the Fastest S550's that are used in street/strip applications. The 2.0 is more robust and STILL lighter! Featuring a S4 4-piston caliper, and an increased diameter from 11.6 in to 12 inches, this slot only finish is still a direct bolt on. Entire system on weights 38.8 lbs which is much lighter than the factory Ford brake system.
Application

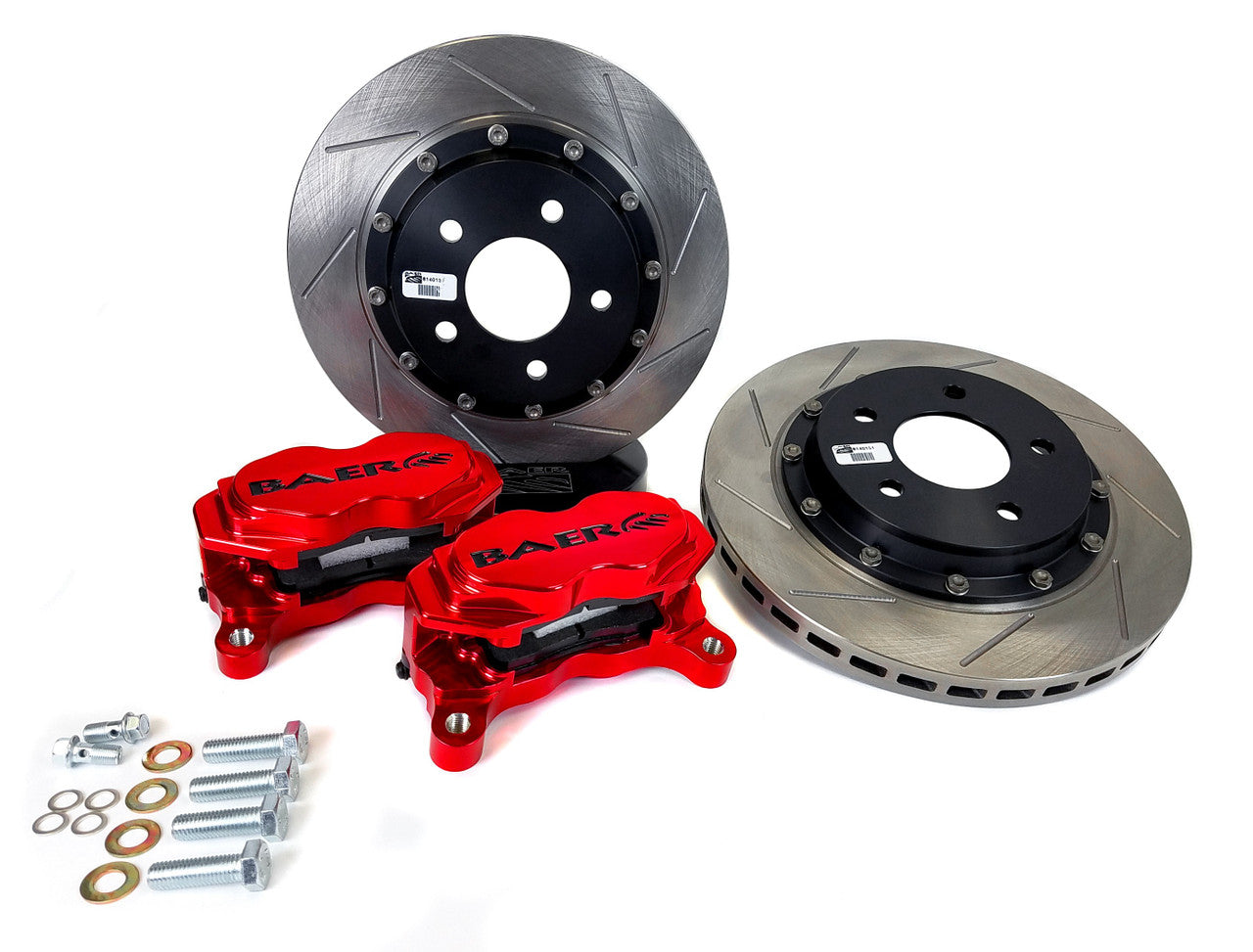

This system features the 4-piston, S4 caliper mounted to a 12" x 1.100" 2 piece slotted rotor and uses the popular DR1/HB100 pad type. Slot only rotors are mounted to 6061 billet aluminum hats using NAS high grade stainless hardware and come pre-assembled. All additional mounting hardware is also included. The SS4+ 2.0 Deep Stage system was designed to allow consumers to push the limits at the strip, yet still have a system that can be driven on the street. The SS4+ 2.0 Deep Stage system fits many 15” and larger wheels.
NOTE: Weld Wheels, will not clear weld wheels 17" with a low pad
- S4 Calipers
- Brake pads
- 2pc rotors
- Banjo bolts & washers (does not include hoses)
Tech Notes
- Designed to be used with 2015-2018 Ford Mustang S550 Rear knuckles
- System weight 38.8lbs
- Does not have park brake
- Will NOT fit short pad 17" Weld Racing Wheel
- This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise.
- Drag Race systems come standard in Clear and Fire Red caliper colors.
Why Purchase the SS4+ Deep Stage Drag Race Systems?
- All the benefits of our larger brake systems just in a smaller package to fit 15" wheels
- Fits most all bead lock wheels
- Designed specifically for heavy, fast cars
- Can be used on the street
- Proper banjo fittings (NOTE: Baer does not use any pipe thread fittings)
- 6061 T-6 billet aluminum hat (anodized black) and bolted to the rotor
- High grade U281 fine thread stainless hardware (with captured nuts)

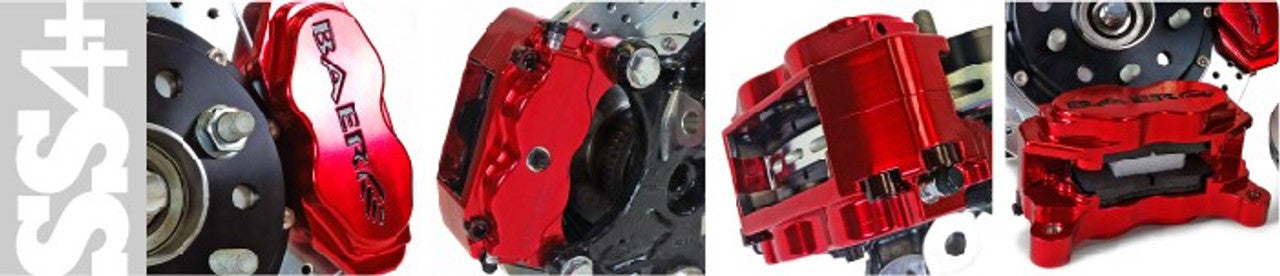

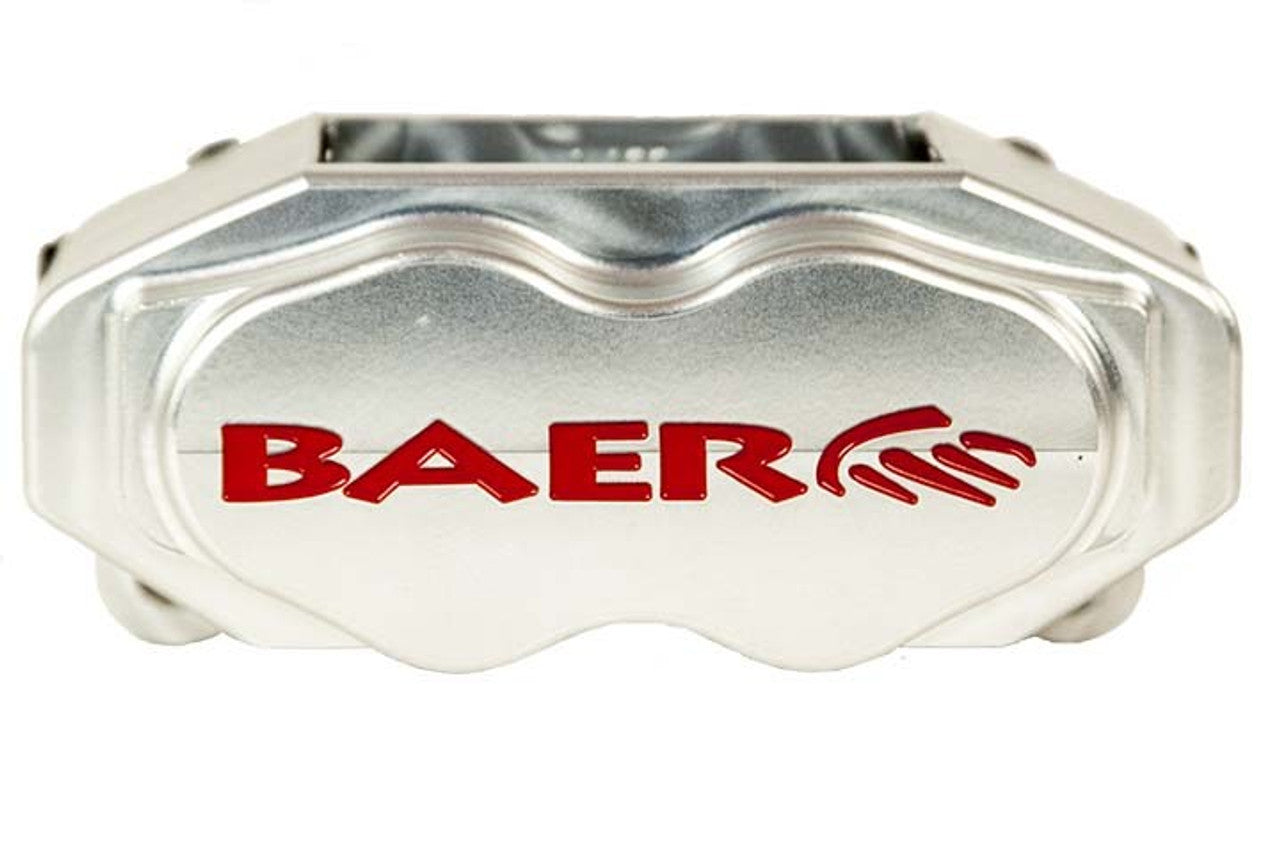

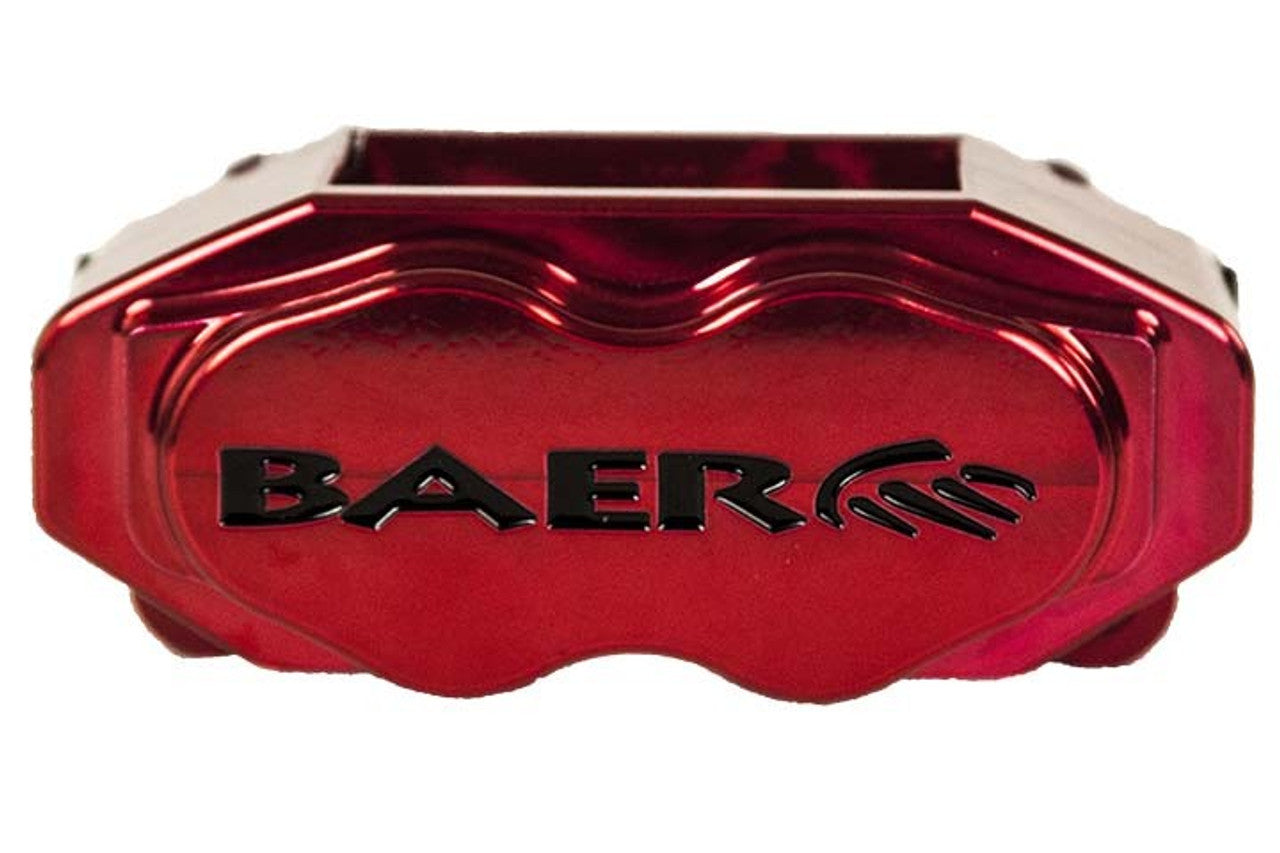

The S4 Caliper Features
- (4) 10mm cross bolts for maximum stiffness
- Stainless steel abutments and noise suppression springs
- Hard anodized aluminum pistons
- Dual seals (dust/weather and pressure)
- Internal crossover design
- Machined logo that is hand painted
- Uses a common 4 piston pad for easy replacements
- Clear or FireRed Standard (custom colors available)
- Available in Front or Rear for that same cosmetic matching look
- Uses correct banjo style fittings, Baer does not use any pipe thread
- 100% MADE IN USA with US sourced material
Part Number: 4262718
Fitment:
2015 Ford Mustang
2016 Ford Mustang
2017 Ford Mustang
2018 Ford Mustang
2019 Ford Mustang
2020 Ford Mustang
2021 Ford Mustang
2022 Ford Mustang
2023 Ford Mustang
