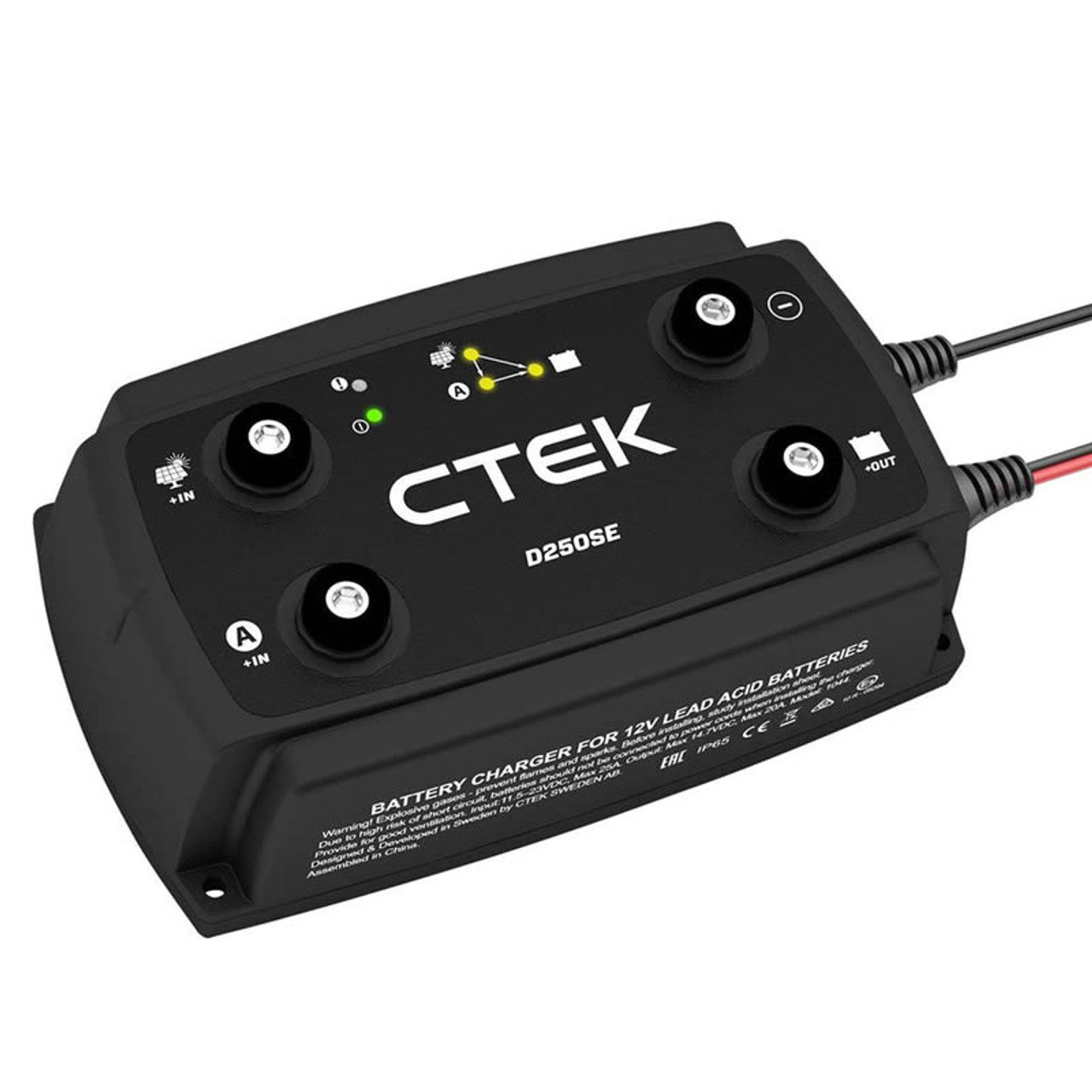

Antigravity CTEK D250SE 12V Smart Charger 20A BC-CTK-D250SE
Antigravity CTEK D250SE 12V Smart Charger 20A BC-CTK-D250SE
Antigravity Batteries

Antigravity CTEK D250SE 12V Smart Charger 20A BC-CTK-D250SE

SKU: antigravity-bc-ctk-d250se
(0)
In stock
Usually ships within 24 hours
$456.99
-13% $525.54 $456.99

Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

20A Smart DC Charger & Maintainer

The D250SE (CTEK Part No. 40-315) is a DC to DC fully automatic charger that’s designed to charge a Service Battery and is powered by the alternator/starter battery. With dual inputs the D250SE is also solar compatible (a standard solar controller is not necessary). The D250SE charger supplies up to 20A of power to any 12V lead-acid or lithium service battery from 40–300Ah. It also works if the starter battery and service battery are different chemistries, for example if the starter battery is lead/acid and the service battery is lithium. (Note: a service battery may also be called an auxiliary/aux battery, house battery, secondary battery, or backup battery.) This is a great charger for our V1 and V2 Lithium Deep Cycle Batteries.

The CTEK D250SE Smart Charger is ideal for RV or other off-grid vehicle owners without access to a mains power supply. This DC-to-DC 20-Amp charger is designed for a dual battery system using a starter battery and service/auxiliary battery. Charge your service battery while on the move!

  • Charge, Condition and Maintain 12V Lithium or Lead/Acid Batteries
  • 20A fully automatic temperature-compensated charging for batteries from 40-300Ah
  • Compatible with both normal and smart alternators
  • Dual input (alternator, solar or both in parallel)
  • Screw terminals make it easy to connect inputs and outputs
  • Selectable lithium and lead-acid mode
  • Solar panel regulator with Maximum Power Point Tracking (MPPT)
  • 5-Step charging program
  • Can be mounted
  • Works great with our V1 and V2 Deep Cycle Batteries

Dual Inputs

The D250SE CTEK Charger has dual inputs and can charge the service battery from the alternator or a solar panel or both. The charger is designed to work with smart alternators and can still operate if the alternator is shut off but the vehicle has access to solar or wind power. So it can use power from the alternator, solar panel, wind power, or any DC power source can be used through the solar input port (within voltage spec). The D250SE can also charge the service battery from the solar input and the alternator in parallel using its built-in regulator to save fuel.

Optimum Charge

Continuous charging while the vehicle’s on the move means the batteries are fully charged in the shortest possible time. The built-in temperature sensor compensates for hot or cold conditions to prevent the battery from overheating or overcharging, so it always gets the optimum charge.

When the service battery being maintained is fully charged, the D250SE will automatically redirect overflow charge power to top-off the starter battery. The D250SE can maintain a stable output up to 20A to vehicles fitted with smart ECU controlled alternators.

Tip: compliment the D250SE charger with a CTEK Smartpass 120S if the service battery capacity is greater than 100Ah or has parallel consumption while charging is in progress. This reduces the charging time. Together, CTEK’s D250SE and Smartpass 120S are a powerful, flexible 140A off-road solution for battery charging management.

5-Step Program

  1. Accept*: Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery. (*Step 1 for lead/acid is Desulphation)
  2. Bulk: Charging with maximum current until approximately 90% battery capacity*. (80% capacity for lead/acid.)
  3. Absorption: Charging with declining current to maximize up to 95% battery capacity*. (100% capacity for lead/acid.)
  4. Float: Maintaining the battery voltage at maximum level by providing a constant voltage charge.
  5. Pulse: Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.
