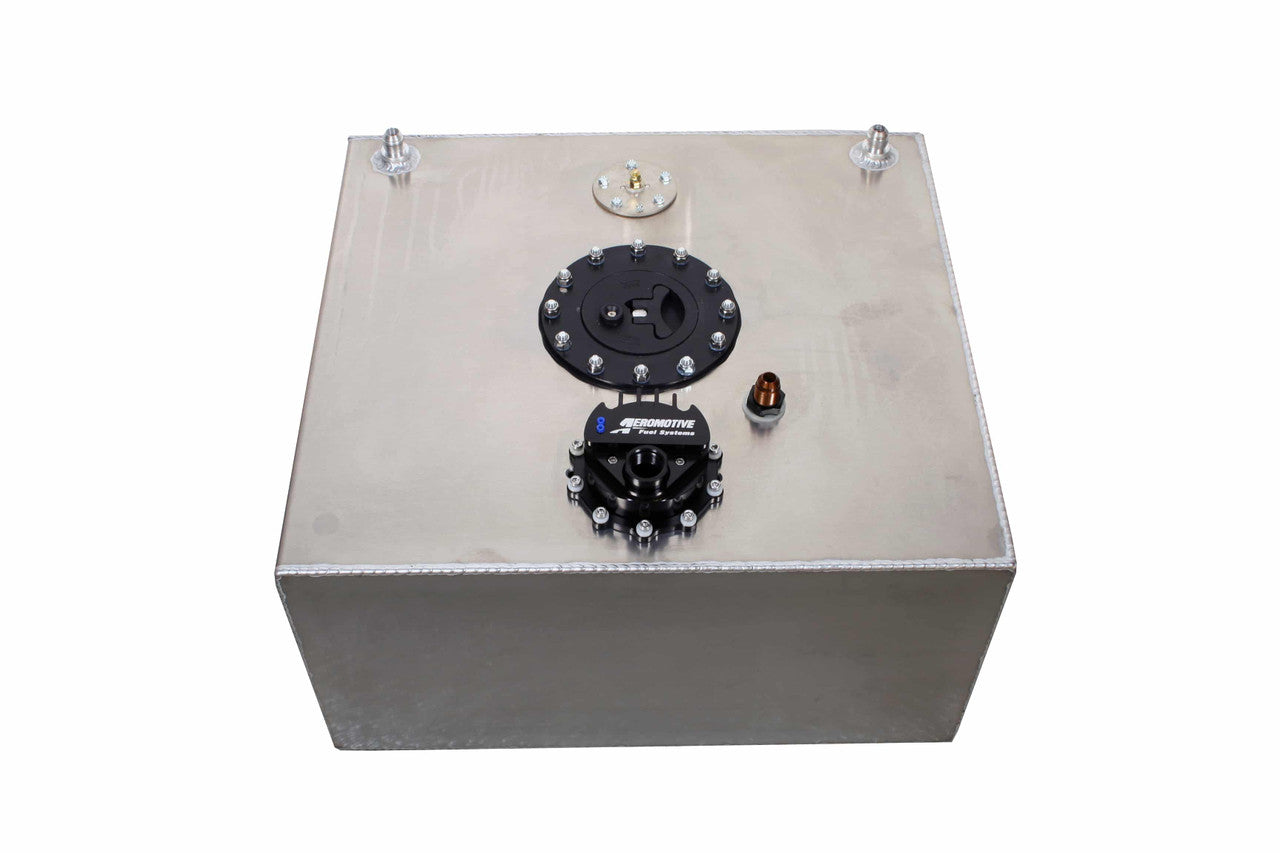

Aeromotive Fuel Cell TVS 15 Gal Brushless Spur 10.0 18649

Upgrade your racing performance with the Aeromotive Fuel Cell TVS 15 Gallon Brushless Spur Gear 10.0 Pump (Part #18649)—the ultimate fuel delivery solution for high-performance applications. Designed for maximum efficiency and reliability, this 15-gallon brushless fuel cell features Aeromotive’s advanced Spur Gear 10.0 pump technology, ideal for high horsepower engines and demanding motorsports environments. With lightweight construction and integrated TVS (Turbine Vane Series) innovation, this Aeromotive fuel system ensures consistent fuel flow, reduced amp draw, and long-lasting durability. Perfect for drag racing, street performance, and custom builds, the Aeromotive 18649 fuel cell delivers the power and quality serious racers demand.

P/N 18647 (6 Gallon), 18649 (15 Gallon), and 18656 (20 Gallon): Brushless Spur 10.0 GPM Fuel Cell with In-Tank Fuel Pump, True Variable Speed, and Pre-Pump Fuel Filter

Ground Shaking Performance – Advanced Technology

• Supports
  • Fuel injected engines:
    – up to 6,900 FWHP on GAS – naturally aspirated
    – up to 4,900 FWHP on GAS – forced air induction

    – up to 4,830 FWHP on E85 – naturally aspirated
    – up to 3,430 FWHP on E85 – forced air induction

    – up to 2,415 FWHP on METHANOL – naturally aspirated
    – up to 1,715 FWHP on METHANOL – forced air induction

    Carbureted Engines:
    – up to 7,600 FWHP on GAS – naturally aspirated
    – up to 5,500 FWHP on GAS – forced air induction

    – up to 5,300 FWHP on E85 – naturally aspirated
    – up to 3,850 FWHP on E85 – forced air induction

    – up to 2,650 FWHP on METHANOL – naturally aspirated
    – up to 1,925 FWHP on METHANOL – forced air induction


• E85 Compatible, reduce max FWHP by 30%


• Lighter than the traditional external mount pumps.


• Reduced current draw at higher, EFI pressures.


• Extended service life in methanol and ethanol.


• New integral spur-gear pumping mechanism.


• 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.


• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.


• ORB-12 inlet and ORB-10 outlet ports.


• Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

• Not compatible with pulse modulated systems or fuel pump speed controllers.


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
